Mounting

Eleven #10-32 blind holes, 10 mm deep, 1.375 in bolt circle, 30° spacing.

The front face is eleven #10-32 blind holes on a 1.375 in [34.93 mm] bolt circle, 30° apart. The three silver hex heads are case screws, not mounts.

WARNING:

Holes are 10 mm deep. A screw that bottoms can lock the rotor. Screw length = plate thickness + engagement. Engagement must be less than 10 mm. Check on a spare screw before you assemble. Torque is not on the drawing.

Keep USB-C, CAN, DFU, and the LED window reachable. Do not plate over the rear cover with no airflow. Envelope and shaft: Specifications.

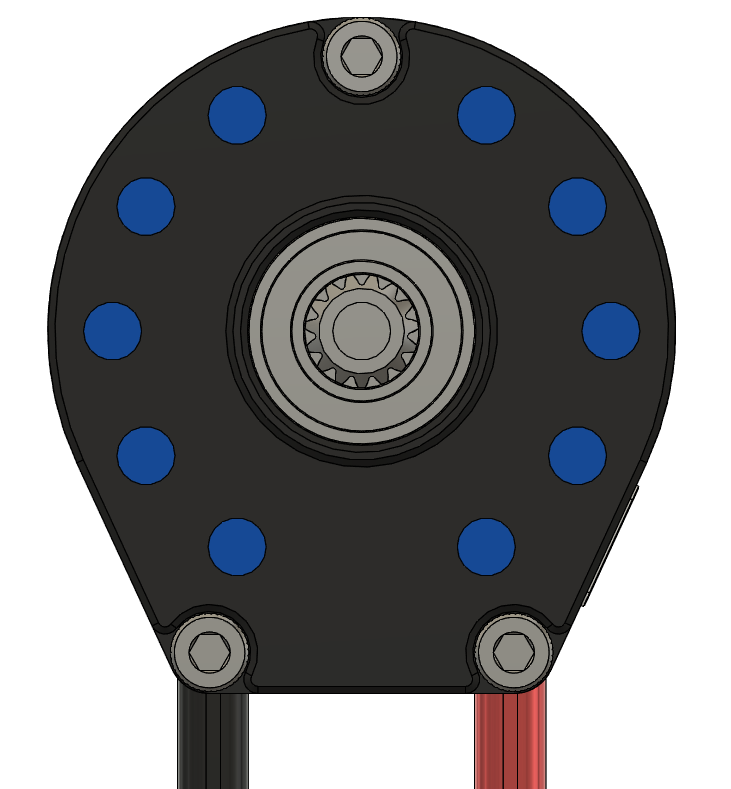

Mounting holes — Blue: eleven #10-32 blind mount holes. Silver hex heads are case screws, not mounts.

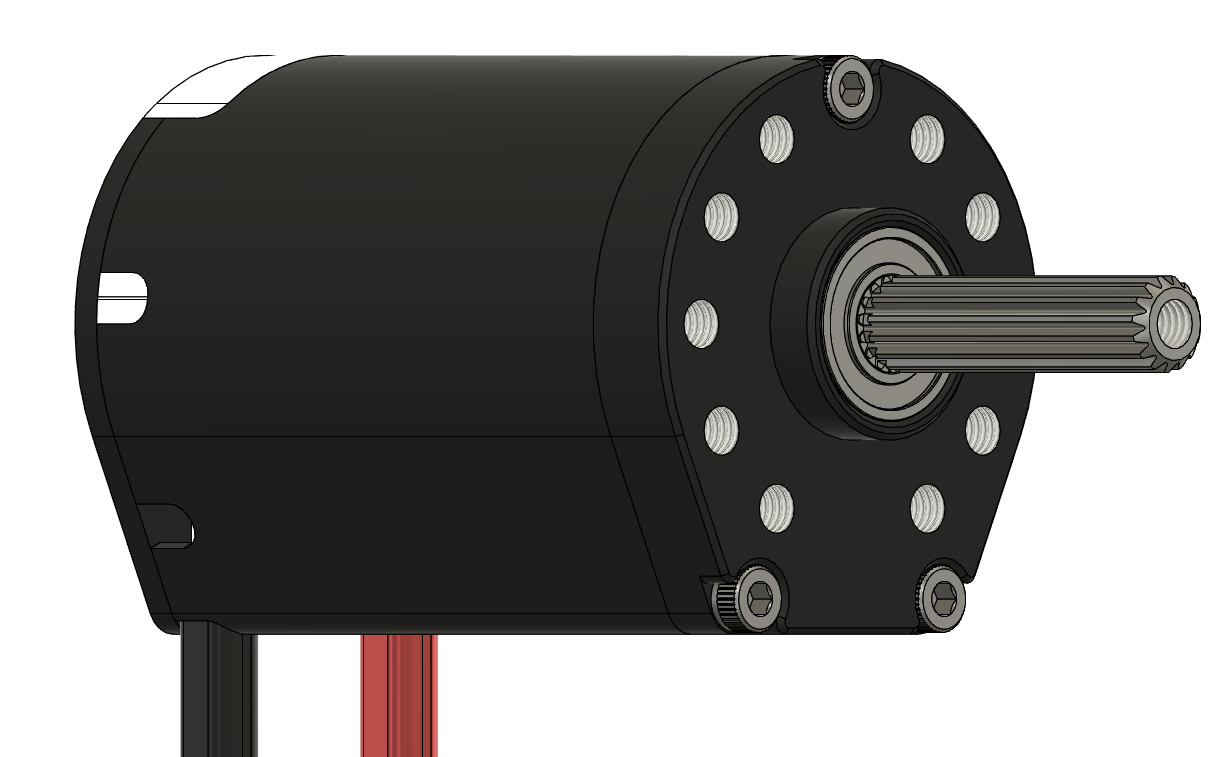

Mount isometric — Mount face and 15T SplineXS shaft. Holes are 10 mm deep.

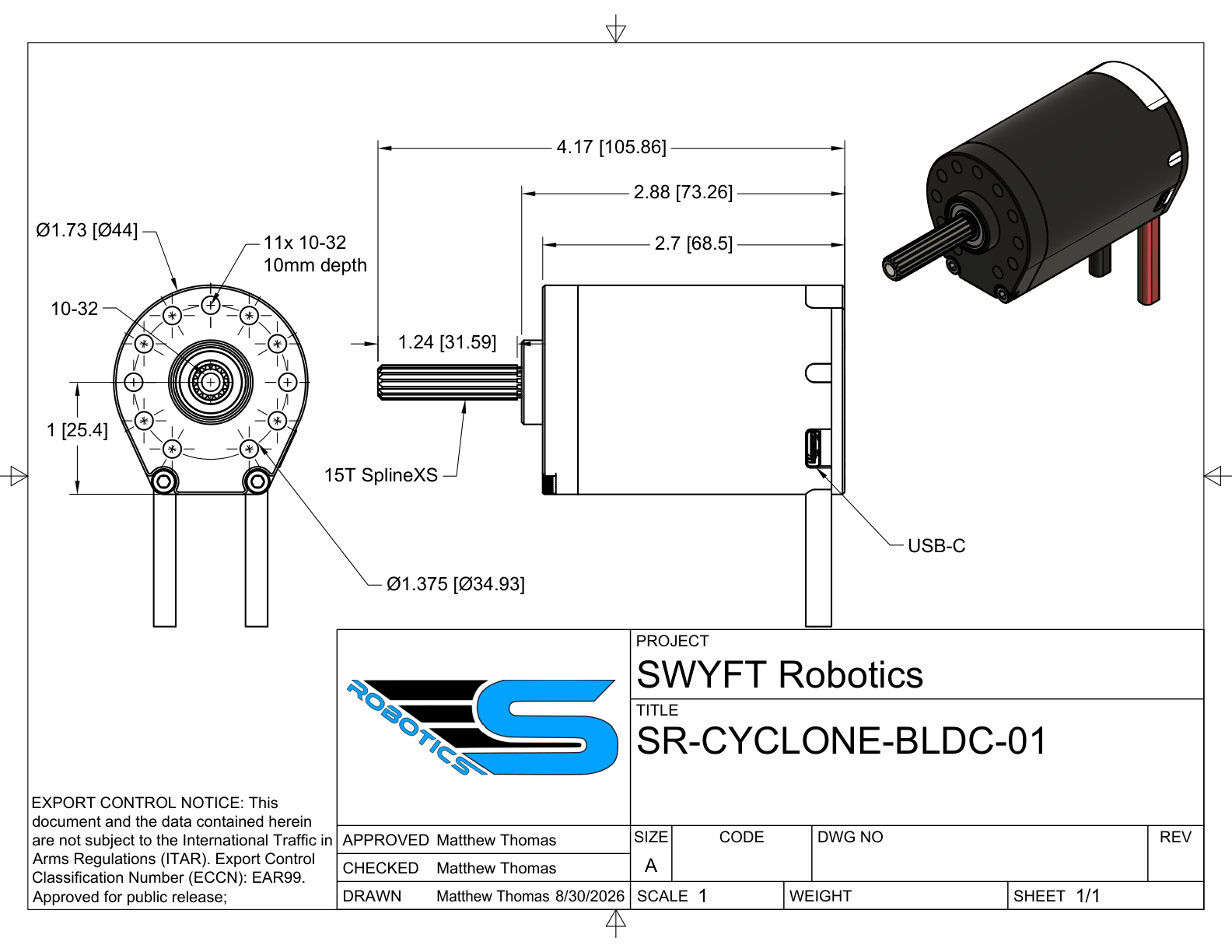

SR-CYCLONE-BLDC-01 dimensioned drawing — SR-CYCLONE-BLDC-01. Inches, millimetres in brackets. PDF
